ASPECT2

ITEM NR LEV110210

FREERIDE FREESTYLE FREERACE BIG AIR
Options
Quantity

€ 1,382.50
(excl. 20% VAT)

LIFT SPEED 9.8 knots
ACCESSIBILITY
MANEUVERABILITY
TOP SPEED
UPWIND
HYDROFOIL CHARACTERISTICS

  • Lift Speed: 9.8 knots
  • Smooth stall behaviour
  • Increased speed range
  • Easier to control, uncompromising performance

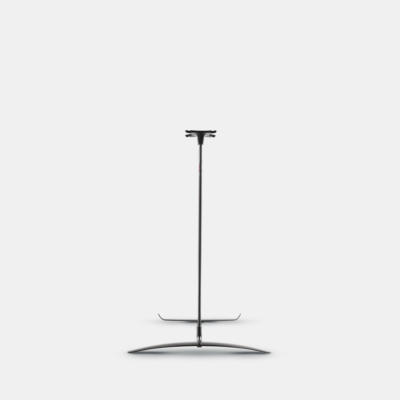

The new Aspect2 wing is created with a lower aspect ratio and rounded tips. Therefore, the foil is easier to control and safer to ride without losing the radical performance of the previous model. The new shape offers a huge speed range. This fact is underlined by its smooth stall behavior and the low stall speed. The Aspect2 is pre-configured with the 55 cm fuselage and the Bionic rear wing which enables unprecedented maneuverability.

Comes ready to fly with cover set and our new hydrofoil bag!

MAST CHARACTERISTICS

  • Carbon/Aluminum
  • 80 cm length
  • Open fixing points for fast and easy assembly
  • Suitable for 4-screw plate mount (see FAQ "Mast Interface" for measurements)

The hybrid mast in 80 cm is perfect for shallow water conditions and for easy maneuvers.

The interfaces are made of high-strenght anodised aluminum. The thinwall design reduces weight and supports simultanous maximum durability. The top plate has open fixing points which allow you to loosen the track nut bolts to slide the top plate out rather than completely remove them. This makes removing the mast for a fast and effortless transport easy.

The low drag carbon fiber section offers maximum stiffness in bending and torsion, to guarantee a stiff and direct-handling feeling.

TECHNOLOGY

CONNECTION SYSTEM
Our unique connection system allows to change the front and rear wing in seconds. For every level and every condition we offer the perfectly matching carbon wing.

FUSELAGE
The lowest possible surface leads to minimal drag combined with maximum stiffness! We rely on our special high alloy steel comprising these advantages together. The assembly with steel is solid and very reliable.

The Aspect2 comes standardized with the 55 Bionic Fuselage and Bionic rear wing to enable best maneuverablity, top speed and upwind angle. Due to our modular design it performes great with our Freeride wing and Fuselage.

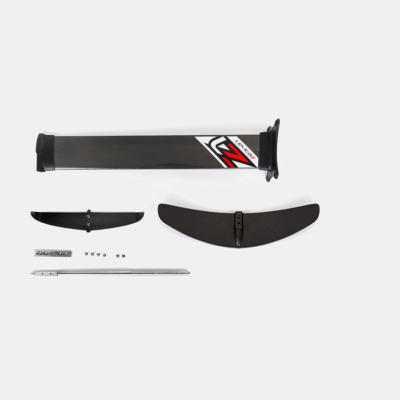

FOIL PACK INCLUDES
COMPONENTS
Mast Hybrid, 80 cm, 4-screw Plate Mount
Frontwing Aspect 2 (625 cm²)
Fuselage Bionic (55 cm)
Rearwing Bionic (190 cm²) with recommended angle +0,6°
PARTS & ACCESSORIES
Connection Plate
Angle Shim Set +0,15°/+0,3°/+0,6°/+0,9°
Foil Screw Set incl. Tool 4 x M6x20, 2 x M6x14
Anti Seize Paste Loctite LB 8065, 20g
Suitable Protective Cover Set (3-piece set) Frontwing-, Rearwing-, Mast-Cover
Travel Bag for Foils Travel Bag (100 cm)

  • Lift Speed: 9.8 knots
  • Smooth stall behaviour
  • Increased speed range
  • Easier to control, uncompromising performance

The new Aspect2 wing is created with a lower aspect ratio and rounded tips. Therefore, the foil is easier to control and safer to ride without losing the radical performance of the previous model. The new shape offers a huge speed range. This fact is underlined by its smooth stall behavior and the low stall speed. The Aspect2 is pre-configured with the 55 cm fuselage and the Bionic rear wing which enables unprecedented maneuverability.

Comes ready to fly with cover set and our new hydrofoil bag!

  • Carbon/Aluminum
  • 80 cm length
  • Open fixing points for fast and easy assembly
  • Suitable for 4-screw plate mount (see FAQ "Mast Interface" for measurements)

The hybrid mast in 80 cm is perfect for shallow water conditions and for easy maneuvers.

The interfaces are made of high-strenght anodised aluminum. The thinwall design reduces weight and supports simultanous maximum durability. The top plate has open fixing points which allow you to loosen the track nut bolts to slide the top plate out rather than completely remove them. This makes removing the mast for a fast and effortless transport easy.

The low drag carbon fiber section offers maximum stiffness in bending and torsion, to guarantee a stiff and direct-handling feeling.

CONNECTION SYSTEM
Our unique connection system allows to change the front and rear wing in seconds. For every level and every condition we offer the perfectly matching carbon wing.

FUSELAGE
The lowest possible surface leads to minimal drag combined with maximum stiffness! We rely on our special high alloy steel comprising these advantages together. The assembly with steel is solid and very reliable.

The Aspect2 comes standardized with the 55 Bionic Fuselage and Bionic rear wing to enable best maneuverablity, top speed and upwind angle. Due to our modular design it performes great with our Freeride wing and Fuselage.

COMPONENTS
Mast Hybrid, 80 cm, 4-screw Plate Mount
Frontwing Aspect 2 (625 cm²)
Fuselage Bionic (55 cm)
Rearwing Bionic (190 cm²) with recommended angle +0,6°
PARTS & ACCESSORIES
Connection Plate
Angle Shim Set +0,15°/+0,3°/+0,6°/+0,9°
Foil Screw Set incl. Tool 4 x M6x20, 2 x M6x14
Anti Seize Paste Loctite LB 8065, 20g
Suitable Protective Cover Set (3-piece set) Frontwing-, Rearwing-, Mast-Cover
Travel Bag for Foils Travel Bag (100 cm)
